Elastomeric coatings form a flexible, rubber-like membrane that expands and contracts with the roof beneath it. Applied correctly to a compatible substrate, they improve solar reflectivity, manage surface moisture, and extend serviceable roof life without a full tear-off.
This comparison breaks down five coating options across the major chemistries available in the US market. We'll look at coating chemistry, roof compatibility, ponding-water resistance, adhesion, weather performance, application requirements, warranty terms, and independently verified technical data.
Key Takeaways
- Silicone, acrylic, polyurethane, and specialty chemistries each solve different roof problems; none wins every category.
- Ponding water favors silicone; positive drainage favors acrylic for reflectivity and lower cost.
- Prioritize elongation, tensile strength, tear resistance, permeability, and solids by volume over reflectivity alone.
- Surface prep, film thickness, and cure conditions often decide early success or failure.
- Compare SolarEx SiliconEx 500 to competitors on the same technical and warranty criteria below.
Overview of Elastomeric Roof Coatings in the US Market
An elastomeric roof coating is a liquid-applied, flexible membrane built to stretch and recover as the roof moves with temperature swings. It shields the substrate from UV, rain, and general weathering. Properly specified systems can extend roof performance by roughly 10 to 20 years, according to industry restoration data.
These coatings are used across a wide range of US roof types, including metal, modified bitumen, built-up roofing (BUR), concrete, EPDM, TPO, and PVC. Compatibility isn't automatic, though. Primer requirements, existing-coating condition, and substrate prep vary by product and must be confirmed against current technical data sheets before any application starts.
The Main Chemistry Families

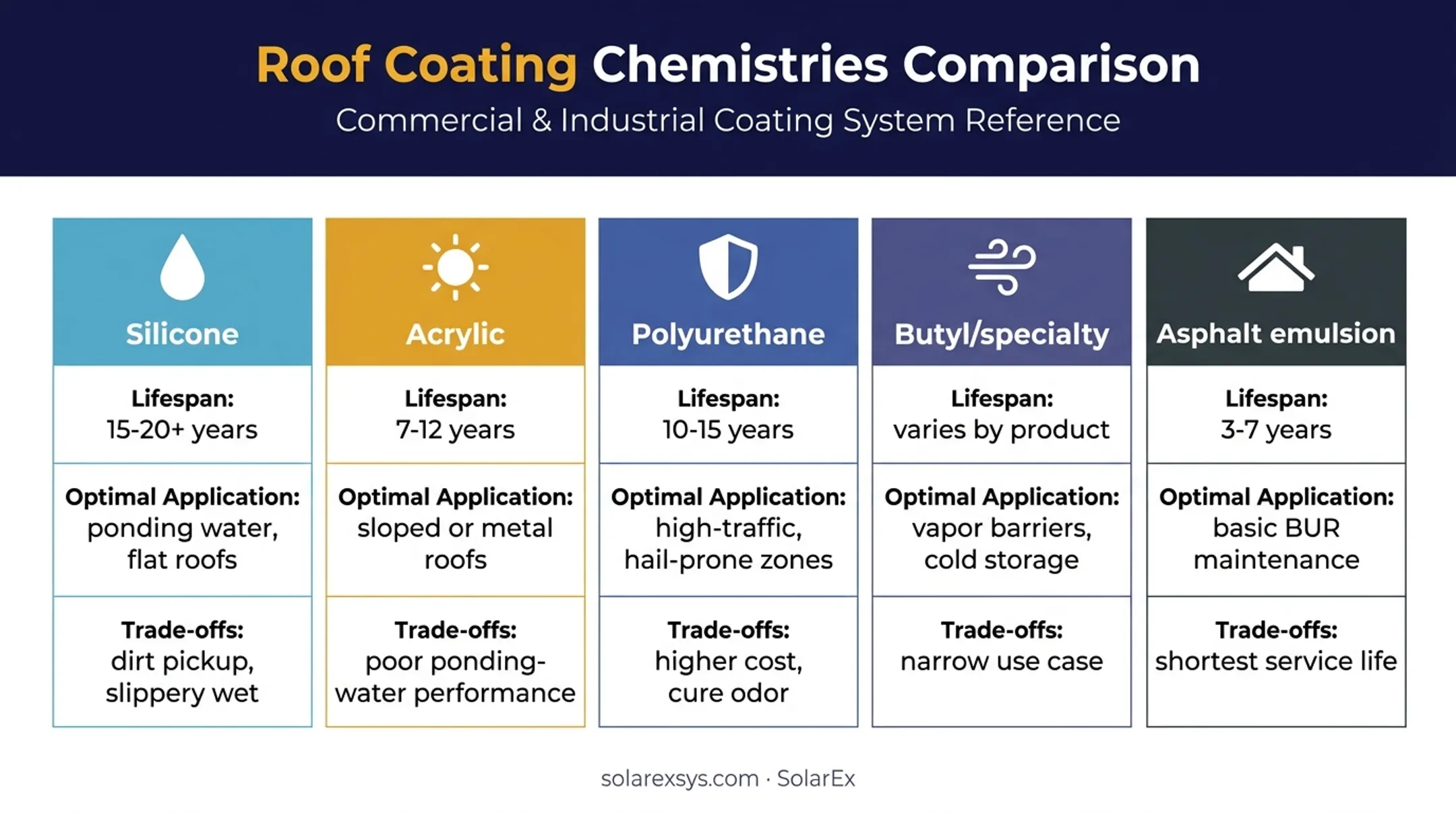

Here's a quick reference for the five chemistries covered in this comparison:
| Chemistry | Typical Lifespan | Best-Fit Conditions | Key Limitation |
|---|---|---|---|
| Silicone | 15–20+ years | Ponding water, flat/low-slope roofs | Dirt pickup, slippery when wet |
| Acrylic | 7–12 years | Sloped or metal roofs with good drainage | Poor ponding-water performance |
| Polyurethane | 10–15 years | High-traffic, hail-prone, equipment zones | Higher cost, cure odor |
| Butyl/specialty | Varies by product | Vapor barriers, cold-storage roofs | Narrow use case |
| Asphalt emulsion | 3–7 years | Basic BUR maintenance coating | Shortest service life |
Substrate prep depends on the membrane:
- TPO and PVC need approved cleaners, primers, and an adhesion test before coating
- EPDM requires chalk removal and seam repairs before silicone or acrylic will bond reliably
- Modified bitumen often needs a bleed-blocking primer to stop asphalt staining through the topcoat
From here, judge each product on documented performance, not on a single reflectivity or warranty-length claim.
Best Elastomeric Roof Coatings
This comparison includes five nationally available options selected for chemistry coverage, documented technical data, and relevance to common US roof conditions. Always verify current specifications directly with the manufacturer before purchase.
SolarEx SiliconEx 500
SiliconEx 500 is SolarEx's 100% silicone, solvent-free, single-component moisture-cure coating, built for roofs facing intense UV, heavy rain, and temperature swings. It's positioned as a restoration option for structurally sound roofs that are weathered or leaking, not as a fix for structural failure or wet insulation.
Performance data:
- Initial solar reflectance 0.87, dropping to 0.72 after three years, with 0.90 emissivity and an SRI of 110
- Tensile strength 230 psi and 250% elongation at break; tear strength 45 pli
- No degradation reported after 5,000 hours of QUV weathering testing
- 96% solids by volume, VOC content of 8 g/L
- Compatible with metal, concrete, wood, TPO, EPDM, modified bitumen, and existing coatings
Coverage runs 1.5 to 2.5 gallons per square depending on the warranty term (10, 15, or 20 years), with a 22-mil minimum dry-film thickness. It's tack-free in roughly 70–80 minutes and fully cures in 12–24 hours under normal conditions. SolarEx recommends an ASTM D-903 adhesion test before application, especially on weathered or previously coated roofs.
GAF High Solids Silicone Roof Coating
GAF's silicone product is one of the more thoroughly documented options in the category, with published data covering ponding-water performance, UV resistance, and multi-substrate compatibility.
Key specs from GAF's technical data sheet:
- 96.60% volume solids, 261% elongation, and 299 psi tensile strength
- Wet adhesion passes at 2.0 pli; tear resistance of 30 lbf/in
- Smooth white initial reflectance of 0.88, aging to 0.69, with 0.90 thermal emittance
- Coverage up to 2.75 gallons per 100 sq. ft. in a single pass
The coating carries CRRC rating, ANSI/UL 790 Class A, and FM approval, according to GAF's product data sheet. Like most silicone systems, it faces the same trade-off: strong ponding-water resistance comes with dirt pickup and wet-surface slipperiness, which manufacturers often address through granulated surfacing.
Acrylic Roof Coating: GAF Premium Acrylic HydroStop
Acrylic remains the go-to choice for reflective, cost-conscious restoration on roofs with functioning drainage. GAF's Premium Acrylic HydroStop Top Coat illustrates the category well.
Documented performance:
- 52% volume solids, 306% initial elongation, 207 psi tensile strength
- Wet adhesion of 8.7 pli and permeability of 3.9 perms
- VOC under 25 g/L, meeting low-emission requirements
- Initial reflectance 0.83, aging to 0.71, with an SRI drop from 87 to 82
Positive drainage is non-negotiable here. The technical data sheet doesn't qualify the product for ponding water, and application requires 50°F and rising surface temperatures with no freezing weather forecast within 8 hours.
It's approved under ASTM D6083-21, CRRC, California Title 24, and Miami-Dade FL620. That makes it a solid pick for reflective residential and commercial roofs where water doesn't collect.
Polyurethane Roof Coating: Sikalastic-646 Lo-VOC
For roofs facing foot traffic, equipment loads, or impact risk, polyurethane systems generally outperform silicone and acrylic on toughness. Sikalastic-646 Lo-VOC, a single-component aliphatic polyurethane, is a good benchmark for this chemistry.
Notable figures:
- Tensile strength of 700 psi and tear resistance of 70 lbf/in
- Static puncture resistance of 55 lbf and 89% volume solids
- Solar reflectance of 0.88 with an SRI of 108
Sika's product documentation states the coating is resistant to ponding water. It can be applied with a phenolic-core roller or spray and offers a 1-hour rain-resistance window. Full systems use a 45-mil base coat with fabric reinforcement and a 20–30 mil topcoat, totaling roughly 58–67 mils. This makes it better suited to mechanical rooftops and high-traffic commercial applications than to straightforward reflective restoration.
Butyl and Specialized Coatings: Lexis EnergyGuard Butyl
Butyl coatings occupy a narrow but important niche: vapor control on spray-foam roofs, especially in cold-storage buildings where moisture drive is a constant threat. Lexis EnergyGuard Butyl demonstrates the category's strengths.
Standout properties:
- Permeability rated at just 0.181 ng/(s·m²·Pa), among the lowest of any coating type
- Elongation of 900% ±100% and tensile strength of 1,000 ±100 psi
- Impact resistance exceeding 160 in-lb
- 40% volume solids, applied at roughly 7.2 dry mils per gallon per 100 sq. ft.
Recommended thickness runs 25–30 dry mils across 2–3 coats. This isn't a general-purpose coating; it's a specialized solution for vapor-barrier needs where standard silicone or acrylic systems fall short. Don't select a butyl coating for its elongation numbers alone. Check compatibility with the existing roof system first.

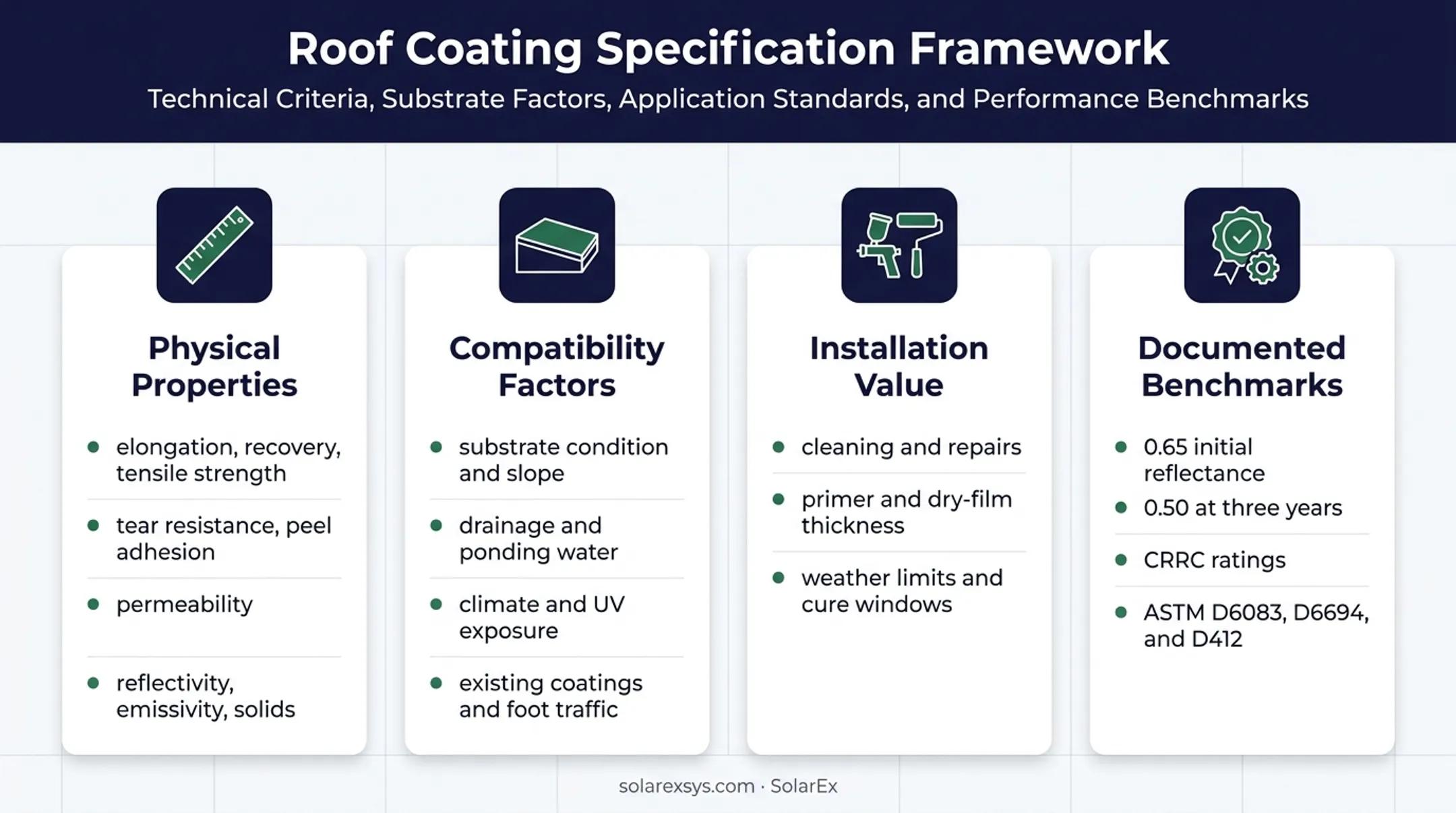

How We Chose the Best Elastomeric Roof Coatings
This is a best-fit comparison, not an absolute ranking. A coating that excels on a ponding flat roof in Phoenix may be the wrong choice for a sloped metal roof in Minnesota.
Physical properties we weighed:
- Elongation, recovery, and tensile strength
- Tear resistance and peel adhesion
- Permeability (water-vapor transmission)
- Reflectivity, emissivity, and solids by volume from current data sheets
Real-world compatibility factors:
- Substrate condition and roof slope
- Drainage patterns and ponding water
- Climate zone, UV exposure, and freeze-thaw cycles
- Existing coatings, penetrations, flashings, and foot traffic
Installation and lifecycle value carried equal weight:
- Cleaning and repair requirements before coating
- Primer needs and target dry-film thickness
- Weather limits, cure windows, and recoating intervals
A coating with strong lab numbers still fails if it is applied outside its cure window or over unrepaired leaks.
Where available, we checked current manufacturer documentation and recognized programs. ENERGY STAR's Roof Products V3 requirements set a low-slope benchmark of initial solar reflectance of 0.65 or higher, with maintained reflectance of 0.50 at three years.
We also used:
- CRRC ratings
- ASTM methods D6083, D6694, and D412
- Code approvals such as Title 24 and Miami-Dade
Those references helped separate documented performance from marketing claims. We did not invent performance metrics or project outcomes for any product listed here.
Conclusion
The best elastomeric roof coating is the one whose chemistry, tested properties, application system, and warranty match your roof's real conditions. A high reflectivity number on the label means little if the product is wrong for your substrate, climate, or warranty needs.
Before comparing products, work through these basics:
- Get a roof assessment
- Fix active leaks and drainage problems first; no coating chemistry, including silicone, is designed to seal an active leak or bridge a structural gap
- Request current technical data sheets and written warranty terms from any manufacturer or contractor you're considering
SolarEx evaluates each project individually, factoring in roof condition, substrate, climate exposure, and long-term energy goals. If you're weighing a reflective acrylic recoat, a silicone restoration system for ponding water, or a solar-ready cool-roof approach, our technical consultants can walk through the roof-specific data with you before you commit to a product.
Frequently Asked Questions
Which elastomeric roof coating is best?
There's no single best option. Silicone leads for ponding water and weathering, acrylic for reflectivity and cost on well-drained roofs, and polyurethane for high-traffic areas. Match the chemistry to your roof conditions and product data.
What is the best elastomeric roof coating for ponding water?
Silicone coatings are commonly specified for ponding-water exposure because the chemistry resists degradation from prolonged moisture contact. Still fix drainage defects, active leaks, and substrate issues first, and confirm manufacturer compatibility.
Is silicone or acrylic roof coating better?
Silicone generally offers stronger ponding-water resistance and longer service life on flat roofs. Acrylic typically provides better reflectivity value, more color options, and breathability on sloped or well-drained roofs. Your roof's drainage situation should drive the decision.
How do I choose an elastomeric roof coating for my roof?
Start with substrate compatibility, drainage, and climate exposure, then factor in UV intensity, foot traffic, and physical properties like elongation and tensile strength. Review installation requirements, warranty terms, and total lifecycle cost before finalizing a product.
How long does elastomeric roof coating last?
Service life varies widely by chemistry, product quality, application thickness, and maintenance. Silicone systems often last 15–20+ years, acrylic 7–12 years, and polyurethane 10–15 years. Always check the manufacturer warranty and recoat guidance.
Can elastomeric roof coating stop an existing roof leak?
Coatings can help prevent minor future infiltration once properly applied, but they aren't a leak-repair product. Active leaks, damaged membranes, failed flashing, and drainage problems must be repaired before any coating goes down.
